Construction | Description |

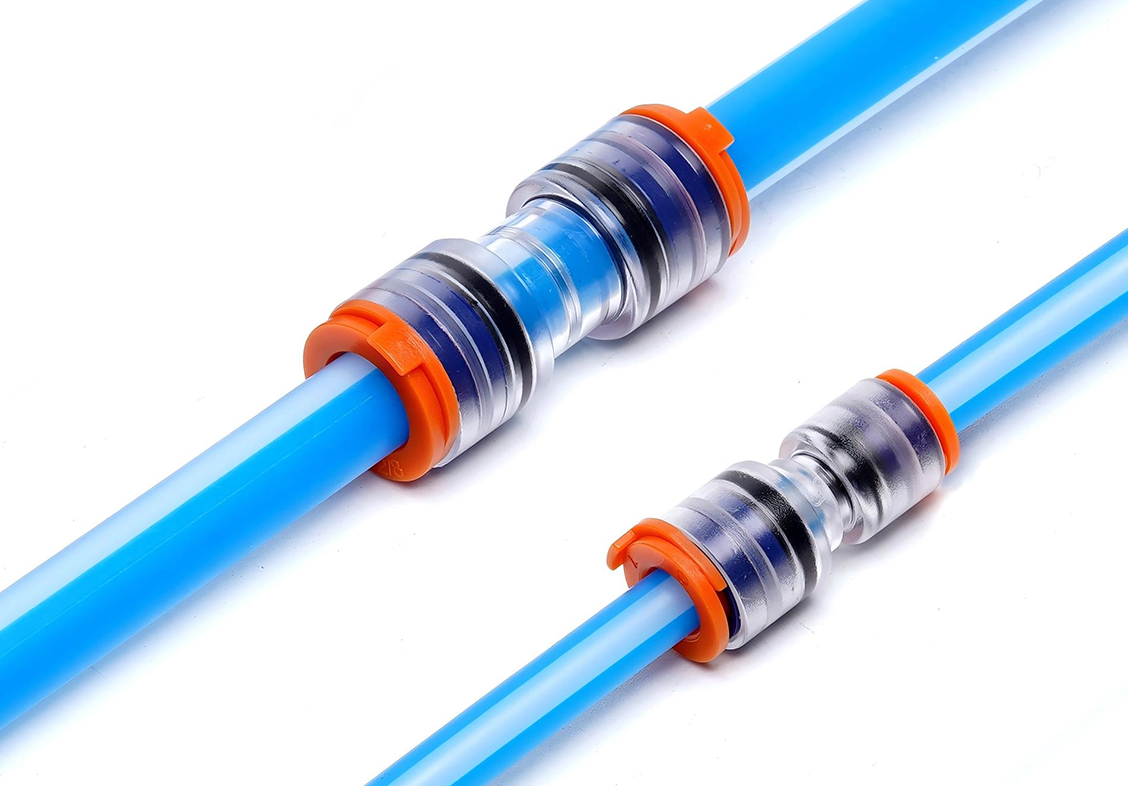

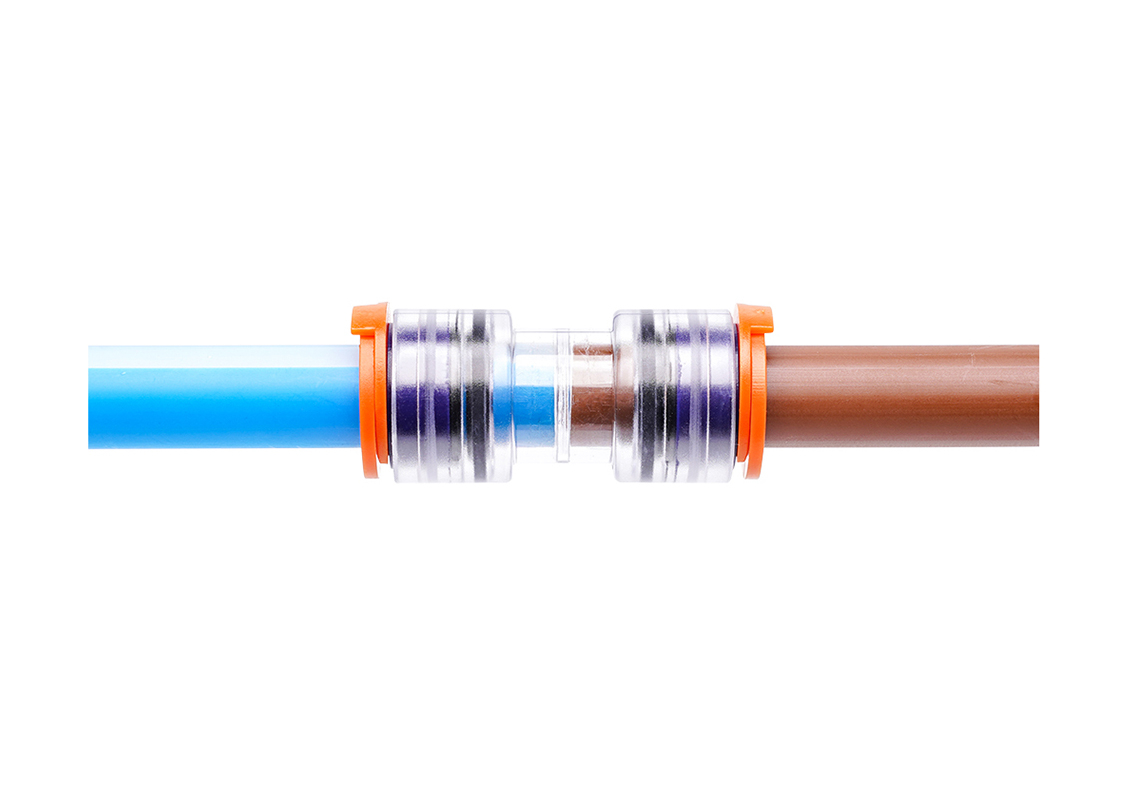

Tube To Connector | HDPEMicroduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15°C to +45°C |
| Operation Temperature | -15°C to +45°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Construction |
EN 60529:IP68 |
| EN 61300-2-26: Salt Mist |
| EN 61300-2-33: Re-entries |
| EN 61300-2-10: Crush Resistance |
| EN 61300-3-1: Visual Appearance |
| EN 61300-2-4: Microduct Retention |
EN 61300- 2-34: Chemical Resistance |
| EN 50411-2-8:Annex E:Insertion Force |
| EN 61386-22: Glow Wire Test at 750°C |
| EN 60794- 1-2: 2003,Method E4:lmpact |
| EN 50411-2-8:Annex D:Installation Test |
| EN 61300-2-22: Change of Temperature |
| EN60794-1-2 Method E1. Tensile Strength |
| EN 61300-2-38: 2006,Method B:Pressure Loss |
| EN 50411-2-8:Annex C: High Pressure Resistance |
| EN 61300-2-23: 1997,Method 2:Water Immersion |
| EN 61386- 24: Conduit Systems Buried Underground |
| EN 61300-2-38:2006, Method A:Sealing Performance |
