A microduct connection needs to stay secure during installation — and remain easy to inspect when you need to check it.

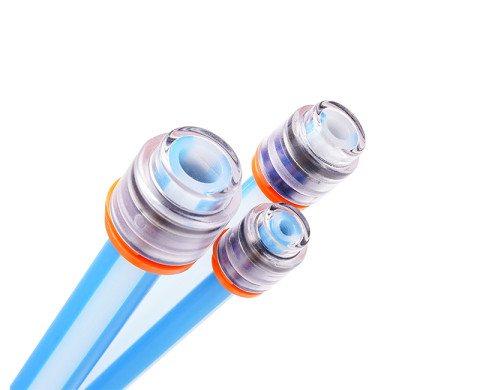

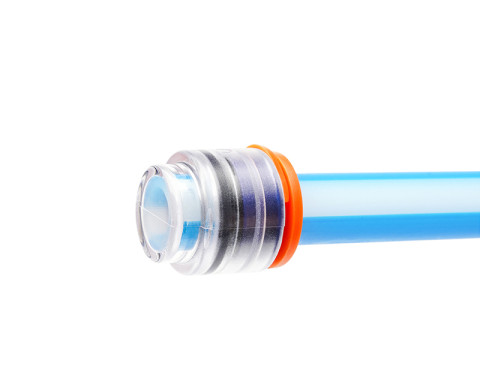

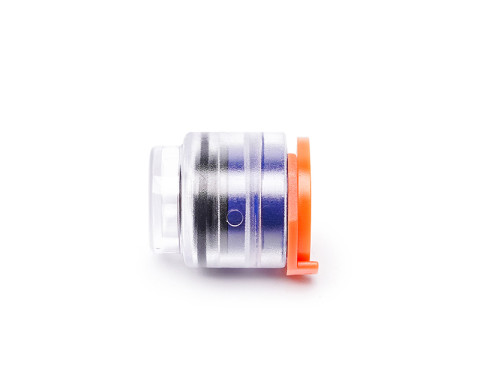

The FCST-ERPUB12 micro capping is available for 12mm microduct, and combines a push-in installation design with a crystal-clear transparent body, making installation quick and visual inspection easier. Its robust construction is designed to withstand high pressure and is suitable for direct-buried applications.
Key Benefits

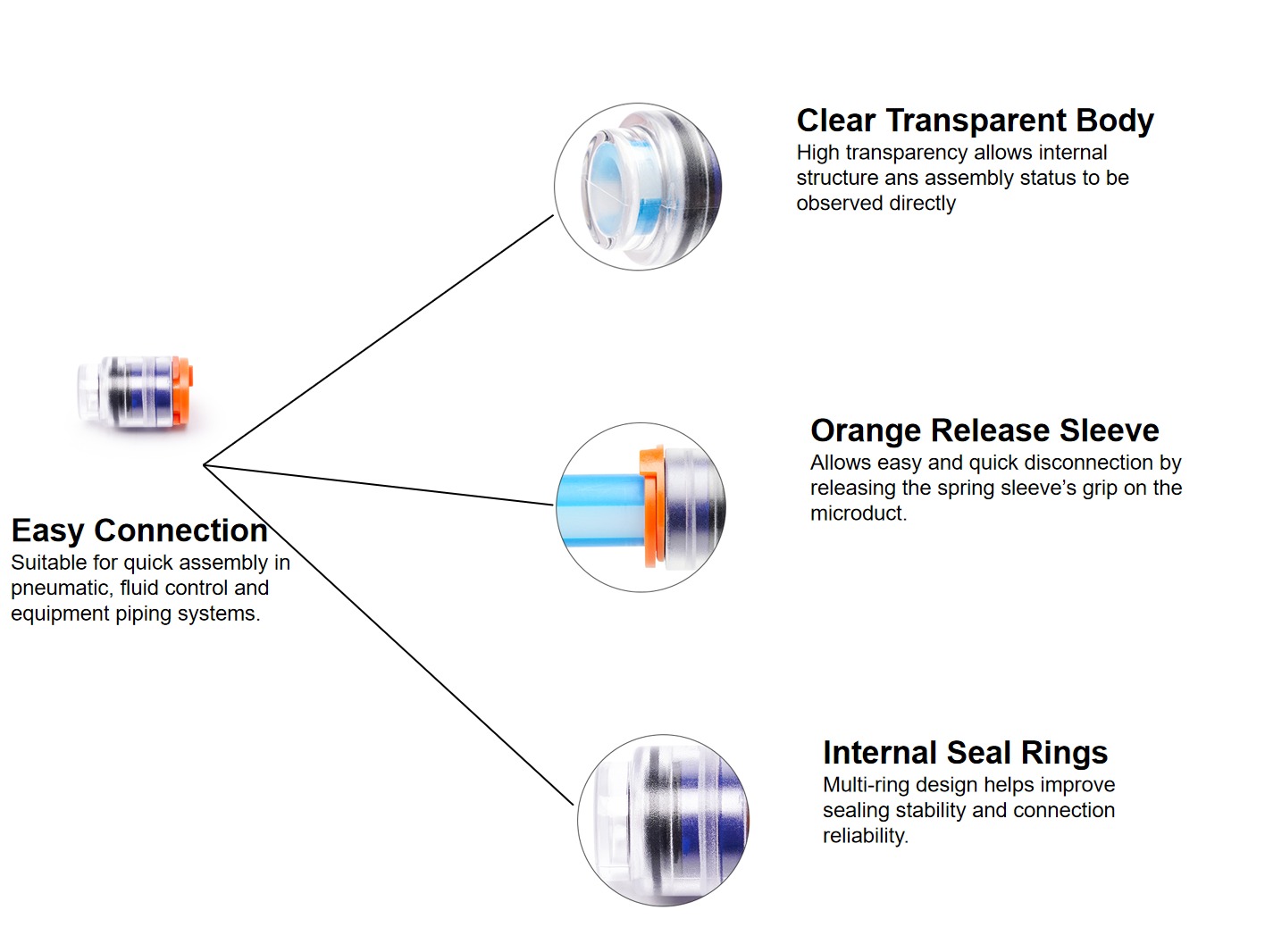

1.Easy push-in installation — Connect the microduct quickly without complicated tools.
2.Crystal-clear body — Makes visual inspection of the cable and connection easier.
3.IP68 protection — Helps protect the connection against water and dust ingress.
4.20 bar working pressure — Suitable for pneumatic fiber blowing systems.
5.Locking components — Help prevent accidental removal after installation.
6.Direct-buried design — Robust construction for underground applications.
7.95% non-metal construction — Reduces the amount of metal used in the connector.
The FCST-ERPUB12 is designed for applications where HDPE microducts need to be securely terminated or closed.
Typical applications include:
1.Underground fiber optic networks
2.Direct-buried microduct systems
3.Fiber blowing installations
4.FTTH and FTTx infrastructure
5.Telecom conduit systems
6.Microduct construction and maintenance
It can be used with HDPE microducts in DB, DI and TW applications and with pneumatic fiber blowing systems.
Installation
1. Prepare the Microduct
Cut the microduct cleanly and make sure the end is free from dirt or deformation.
2. Push into the Connector
Insert the microduct into the microduct end stop connector until it reaches the required position.
3. Check the Connection
Make sure the microduct is fully inserted and the locking components are properly engaged.
Construction | Description |
Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15°C to +45°C |
| Operation Temperature | -15°C to +45°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Quality Control
Standards & Test References:
CEI EN 50411-2-8, EN 50411-2-5, EN 61300, EN 61753-1, EN 60068-2-10, EN 60794-1-2:2003 and related test methods listed in the product specification.
Need More Technical Details?
→ Download Datasheet
1. How do I choose the right microduct caps?
Choose a microduct straight cap that matches your microduct’s outside diameter (OD). Check the product size chart before ordering.
2. Can I use it with microducts from other brands?
Yes. The key is to match the microduct OD and specifications, not the brand name.
3. Can I install it without special tools?
Yes. The push-fit design allows quick, tool-free installation. Just push the microduct fully into the connector.
4. How can I make sure the microduct is inserted correctly?
The transparent body lets you see the insertion position, helping you confirm the connection before cable blowing.
5. Can I use it for underground installation?
Selected models are suitable for direct burial applications. Check the product specifications to choose the right model for your installation.
6. Can I order a small quantity for testing?
Yes. Small-quantity orders are welcome, so you can test the connectors on your project before ordering larger quantities.
Need a Small Quantity?
150 pcs/box — suitable for maintenance, testing, small installations, and individual project requirements.
[ Add to Cart ]
Buying for a Project?
For FTTH deployment, fiber-blowing projects, underground microduct networks, or larger quantities, request project pricing from OSP.
[ Get Bulk Pricing ]
