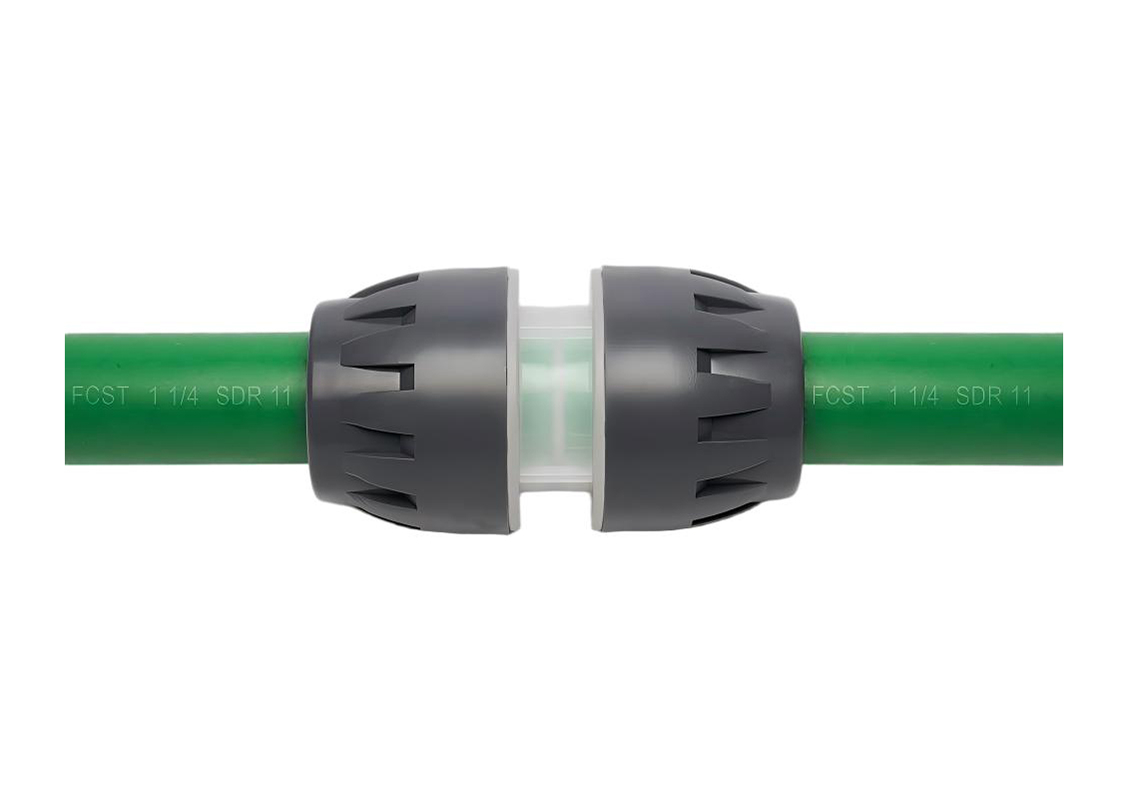

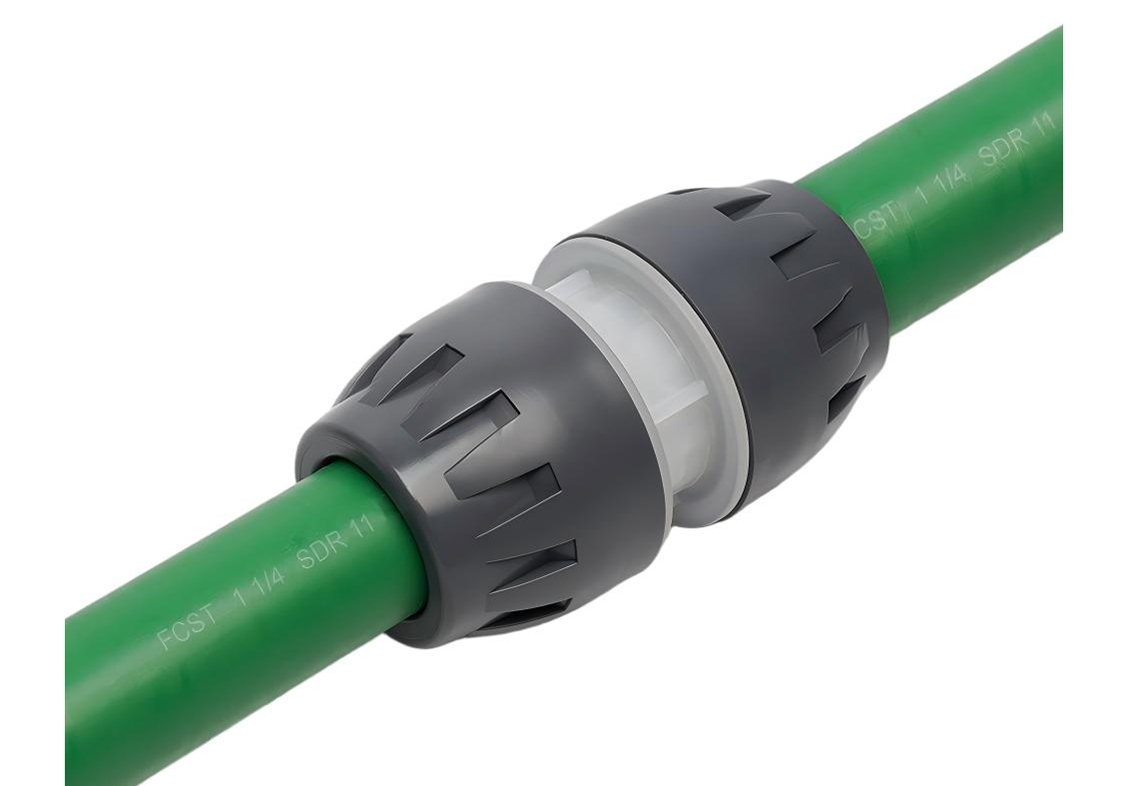

Precise Fit for 1-1/4" SDR11 Ducts: Designed specifically for 42.2mm OD SDR11 silicon core pipes, ensuring accurate alignment and smooth cable passage.
Airtight Sealing for Cable Jetting: Integrated NBR O-rings help maintain stable air pressure during fiber blowing and cable jetting operations.
High Pull-Out Resistance: With a tensile strength of ≥4300N, the connector remains securely locked under installation loads and ground movement.
Fast Tool-Free Installation: The push-lock mechanism enables quick field installation without heat fusion or special training.
Durable Underground Performance: Manufactured from high-impact ABS material with excellent resistance to moisture, corrosion, and underground environmental conditions.
Construction | Description |
Material | Body:ABS Sealing Ring:NBR |
| Reference Standard | JT/T496-2018、Q/KL020-2005 |
| Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
| Tensile Resistance(Under Tightened State) | ≥4300N(32mm) |
| Weight(g) | 102.3g(32mm) |
| High Temperature Resistance | -40℃~+60℃ |
| High Pressure Resistance | 20Bar |
| Service Life | 20Years |
Fiber Optic Cable Jetting Networks
FTTH Outside Plant (OSP) Infrastructure
Telecom Sub-Duct Systems
Silicon Core Pipe Networks
Underground Cable Protection Systems
Highway and Utility Communication Projects
