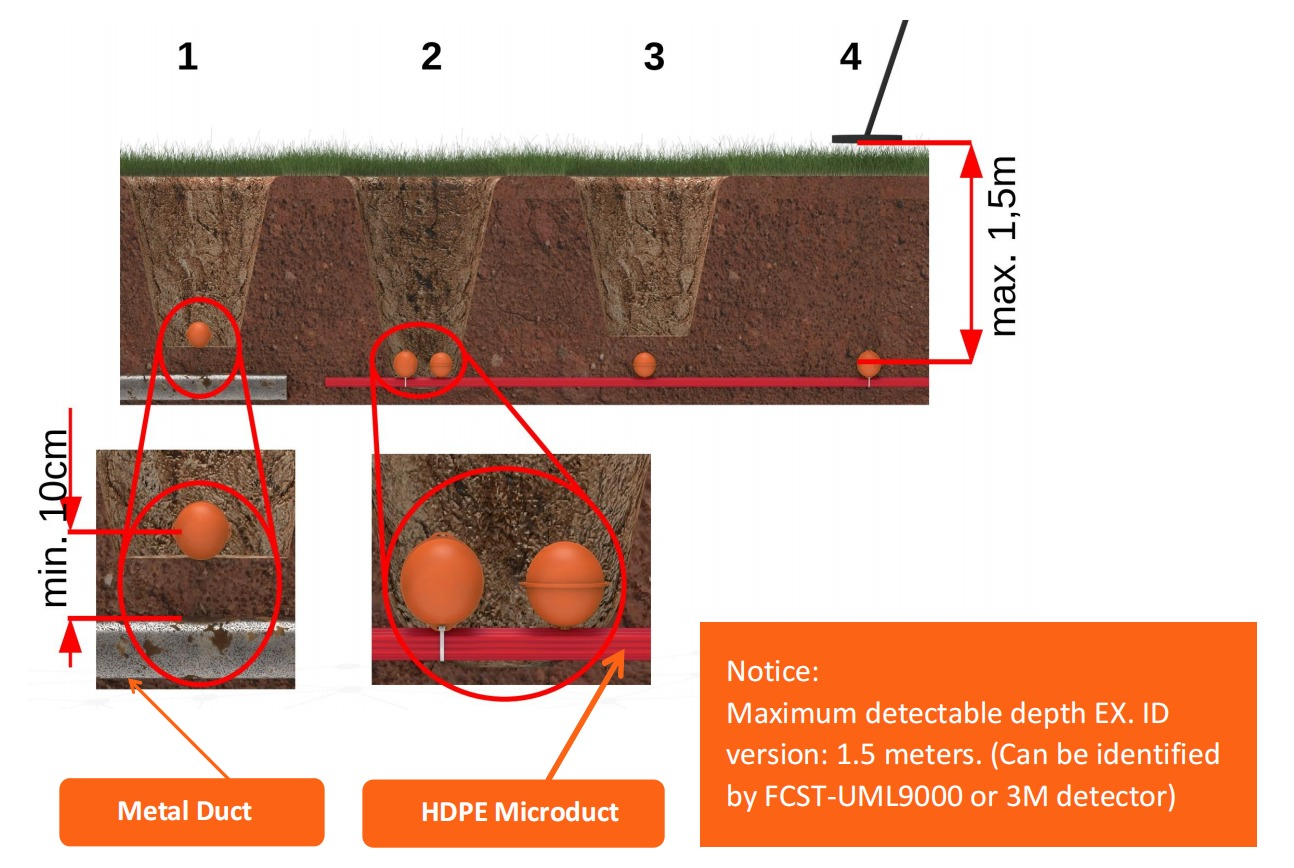

- Detection range up to <1.5m.
- For manholes or direct buried installation.
- It contains no antifreeze and features a lightweight design.
- Using industry-standard frequencies, it will work with any electronic marker locating devices.
- The coil adaptively adjusts, Self orientation RF reflector ensures best detection range and accuracy.
- No batteries or active components, and the proven high reliability design means these markers will last.
Construction | Description |
Product Type | EX.ID version |
Frequency | 101.4kHz |
Identification Depth | 1.5m |
Maximum Detectable Depth | 1.5 m (EX.ID version) |
Service Life | 50 years |
Diameter | Φ120mm丨4.724in |
Height | 115mm丨4.528in |
Material | HDPE |
Weight | 350g(±20g) |
Protection Level | IP68 |
Storage Temperature | 40℃ to +70℃ |
Operating Temperature | -40℃ to +60℃ |
Marker Ball Distance | Maximum distance 50m |
Drop Test | Can withstand a 1.5m drop to the concrete floor. |
Stress Resistance | Withstands 400kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function. |
DetectorCompatibility | FCST-UML9000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |
Packaging Info. | 30pcs/cnt 12.75kg 0.043cbm(560*225*340mm） 18cnt/pallet 247kg 2.016cbm(2100*800*1200mm） |
