FCST080503-10mw Pen-type Visual Fault Locator

FCST FCST080503-10mw Pen-type Visual Fault Locator

Name: FCST080503-10mw Pen-type Visual Fault Locator
Brand: FCST
SKU: FCST080503-10mw
Price: 31.88 usd
Availability: InStock

$31.88

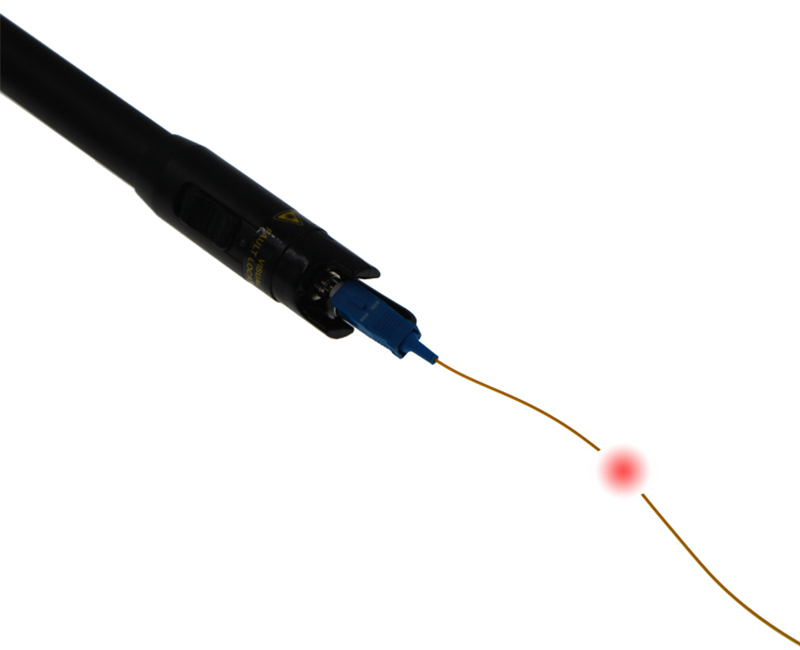

The FCST080503 Pen-Type Visual Fault Locator (VFL) is a compact, field-ready fiber diagnostic tool engineered for optical network installation, tracing, and maintenance. Emitting a high-visibility 650nm red laser,it allows technicians to visually pinpoint fiber breaks, microbends, tight bends.

Watch Video

Precise Optical Fault Identification: Emits a visible 650nm red light to quickly locate breakpoints, microbends, and connector failures through cable jackets.
OTDR Dead Zone Companion: Identifies close-range fiber faults and connector issues that fall within OTDR dead zones.
Dual Operating Modes: Toggles easily between Continuous Wave (CW) for static tracing and Pulsed mode (2–3Hz) for enhanced fault visibility under daylight conditions.
ESD & Impact-Resistant Construction: Built with a grounded laser housing to prevent ESD damage, paired with a dust-proof and crash-resistant optical head.

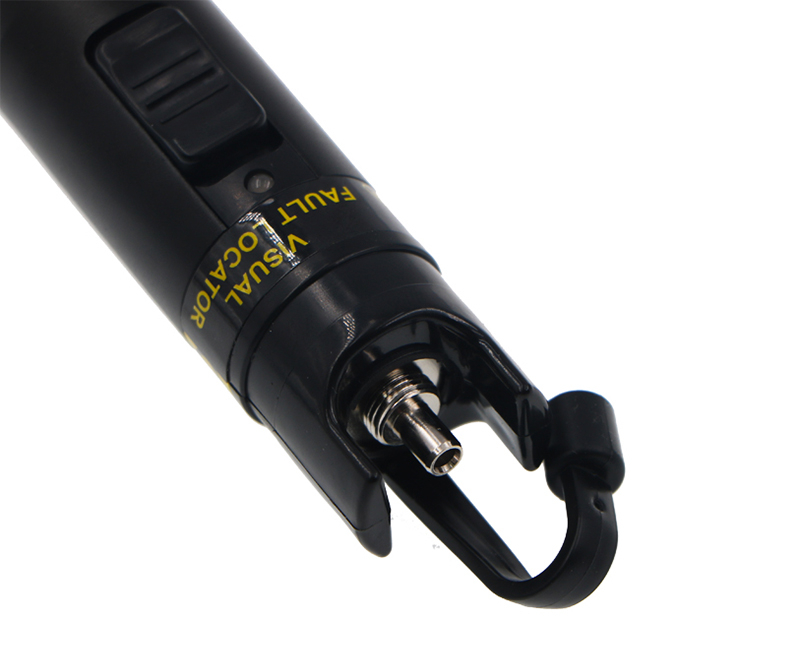

Universal 2.5mm Interface: Directly accommodates SC, ST, and FC connectors, with optional hybrid adapters available for 1.25mm LC interfaces.

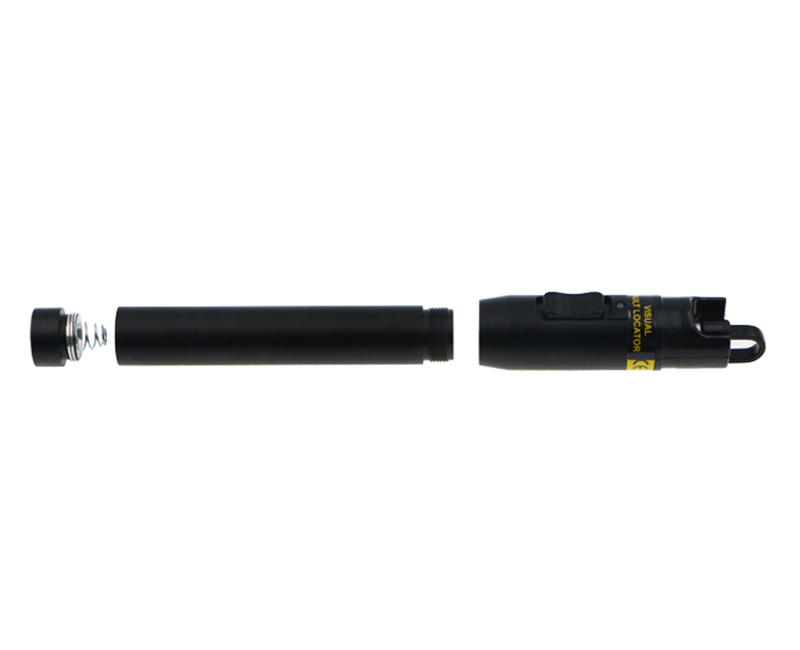

Extended Field Power Management: Runs on standard AA alkaline batteries, delivering up to 65 hours of continuous operation (1mW model) with an integrated low-battery indicator.

Construction	Description
Product Name	FCST080503 Pen-type Visual Fault Locator
Central Wavelength	650nm±10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power	Optional choice for 1mw, 10mw on actual needs
Distance Range	5/8/10/20/30km
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz
Power Supply	2 AA alkaline batteries
Battery Operating Time	650nm@1mw ≥65hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature	-10~+45 (℃)
Storage Temperature	-40~+70 (℃)
Dimension (mm)	￠15X180
Weight	900g(Without battery)

Construction	Description
Insertion Loss	1310nm≥0.3dB,1550nm≤0.3dB
Return Loss	1310nm≥50dB,1550nm≥50dB

FTTH & Telecom Network Maintenance: Verifying patch cord continuity, port assignment, and field-terminated connectors.
Fiber Optic Cable Installation: Tracing end-to-end fiber routing inside patch panels, splice trays, and distribution boxes.
OTDR Fault Verification: Checking initial fiber spans and splice trays located within OTDR blind spots.

Q: Can the FCST080503 test LC connectors?

A: Yes. While the device features a native 2.5mm universal connector for SC, ST, and FC interfaces, an optional 1.25mm-to-2.5mm hybrid adapter can be provided to support LC connections.

Q: When should I use Pulsed mode instead of Continuous Wave (CW)?

A: CW mode provides a steady visual red beam suitable for continuous tracing. Pulsed mode (blinking at 2–3Hz) creates high visual contrast, making faults easier to identify in ambient light or inside high-density patch enclosures.

Q: What power safety and static protections are built into the unit?

A: The device incorporates a grounded laser housing designed to protect optical components from electrostatic discharge (ESD), alongside a protective housing head that defends against dust and physical drops.

Q: How does this tool assist when using an OTDR?

A: OTDR devices often experience a "dead zone" where very short-distance fiber faults near the launching port cannot be measured precisely. The FCST080503 visually highlights fiber breaks or sharp bends within those first few meters.
