FCST FCST080701 Optical Fiber Identifier

$318.85

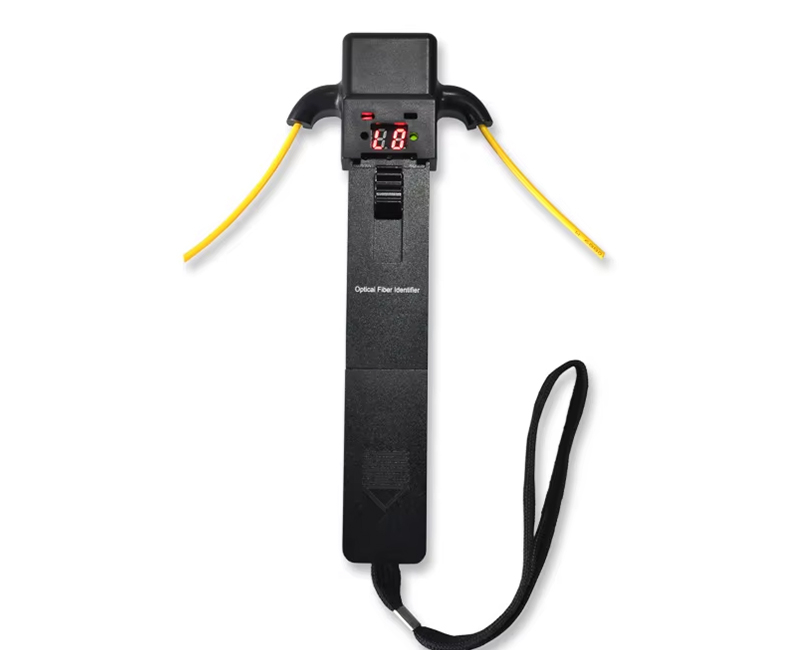

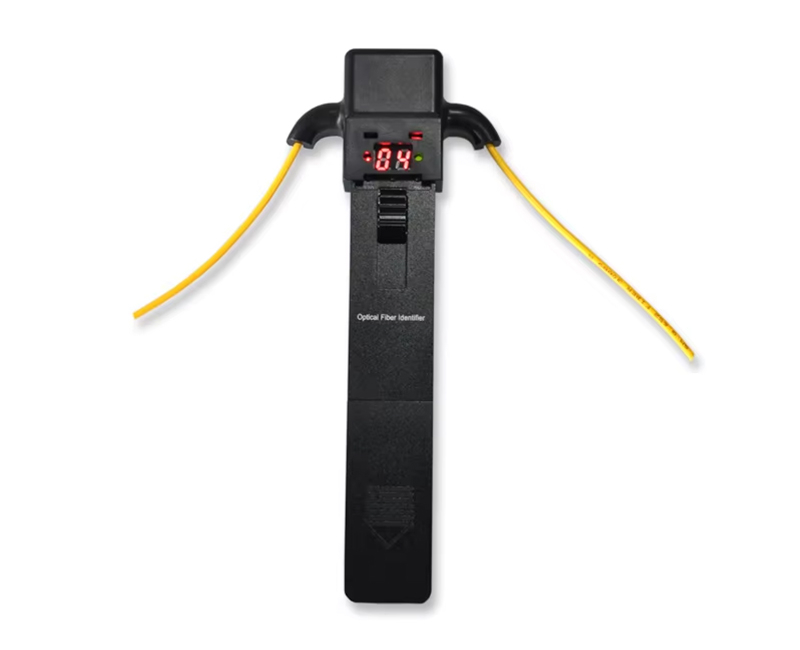

The FCST080701 is a handheld optical fiber identifier for non-intrusive traffic direction and tone detection on live networks. Using safe macro-bending, it displays core power and signal direction via LEDs without interrupting traffic. Featuring four interchangeable adapters, a sunshade, and a durable metal housing.

Non-Destructive Live Fiber Testing: Identifies traffic direction and relative core power without cutting the fiber or interrupting network services.
Tone Modulation Detection: Detects CW signals and 270 Hz, 1 kHz, and 2 kHz modulated tones with audible alert feedback.

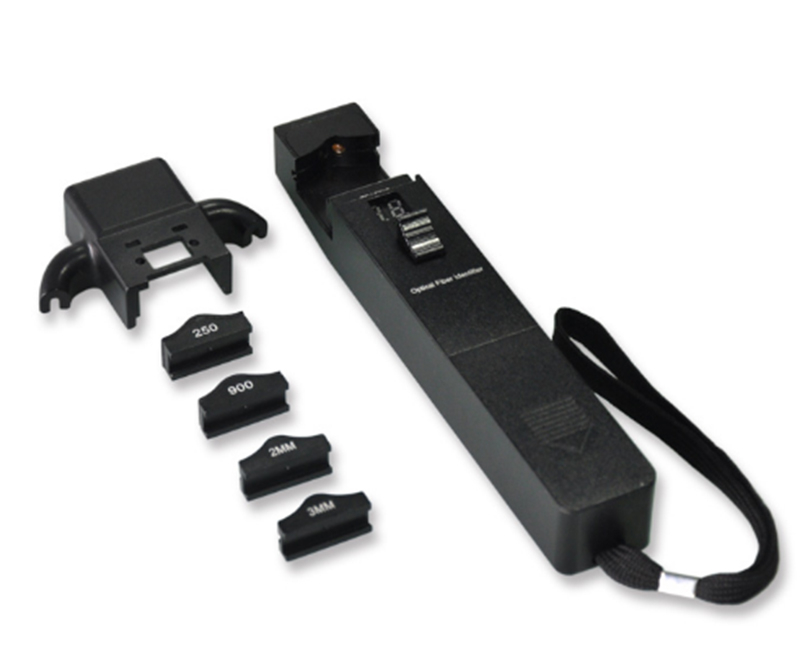

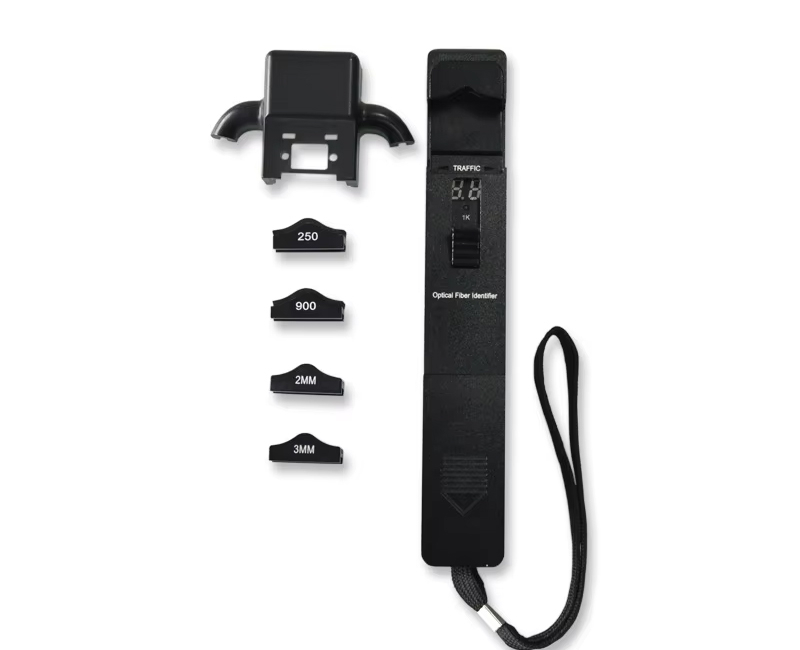

Four Interchangeable Adapters: Includes head adapters for Ø0.25 mm bare fiber, as well as Ø0.9 mm, Ø2.0 mm, and Ø3.0 mm jacketed cables.
Integrated Sunshade Attachment: Shielding attachment minimizes ambient light interference during outdoor field testing.
Single-Key Operation: Streamlined single-button interface enables field technicians to perform fast, one-handed readings.
Metal Housing: Built with a durable metal casing to withstand daily field use.

Construction	Description
Model	FCST080701 Optical Fiber Identifier
Identified Wavelength Range	800-1700 nm
Identified Signal Type	CW, 270Hz±5%，1kHz±5%，2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 (Applicable for Bare Fiber)， Ø0.9 (Applicable for Ø0.9 Cable )， Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ).
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10(1310nm) -50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~+10
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	{Ø0.9,Ø2.0,Ø3.0:-30~0 (270Hz,1KHz) -25~0 (2KHz)} Ø0.25:-25~0(270Hz,1KHz) -20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm) 2.5 (1550nm)
Alkaline Battery(V)	9
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension (mm)	19630.527
Weight (g)	200

Live fiber route tracing and signal identification in FTTx / PON networks
Optical patch panel and distribution frame fiber tracing
Routine maintenance, audit, and troubleshooting without service disruption

Q: Will using this fiber identifier disrupt live active services?
A: No. The instrument uses micro-bending detection technology, allowing signal direction and core power measurements without cutting or interrupting active fiber links.
Q: What cable sizes are supported out of the box?
A: The standard package includes four swap-in adapter heads: Ø0.25 mm for bare fiber, plus Ø0.9 mm, Ø2.0 mm, and Ø3.0 mm adapters for standard pigtails and patch cords.
Q: Can this unit identify tone frequencies injected by an optical light source?
A: Yes, it recognizes 270 Hz, 1 kHz, and 2 kHz modulated signals and provides a continuous audible beep upon detection.
Q: How does the included sunshade assist during field work?
A: The sunshade clips over the adapter area to block intense ambient sunlight, ensuring consistent detection sensitivity during outdoor operations.
