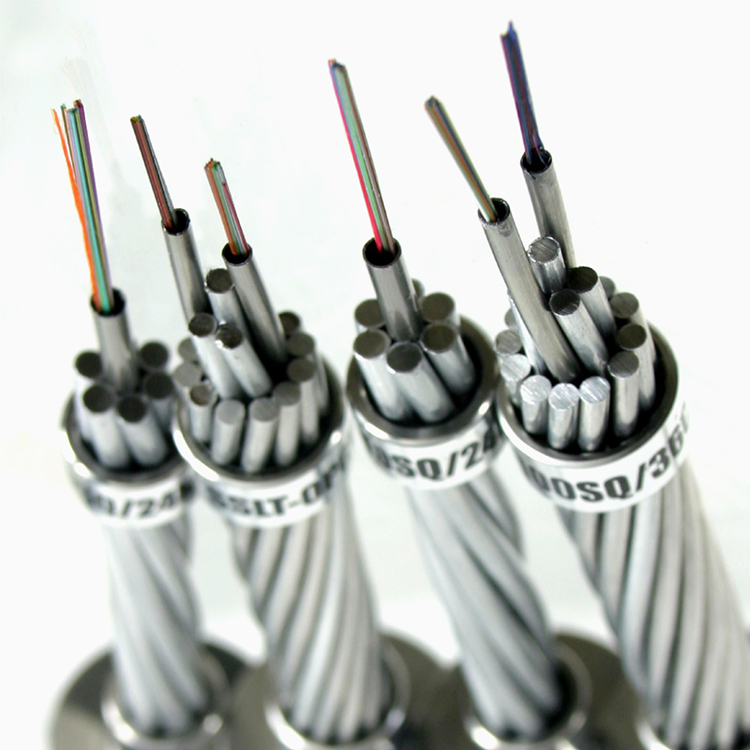

The Hasçelik HASC-OPGW-24F-ALT is a 24-fiber Optical Ground Wire (OPGW) utilizing a central aluminum tube design. This cable serves the dual function of a traditional shield/ground wire while simultaneously providing a high-capacity fiber optic communication path along the transmission line. Manufactured by Hasçelik Kablo — Turkey's largest cable manufacturer — to international IEEE 1138 and IEC 60794-4 standards.
The 24 single-mode optical fibers are housed in a sealed, water-resistant central aluminum tube filled with water-blocking gel, providing full mechanical and environmental protection. The optical unit is surrounded by one or more concentric layers of aluminum-clad steel (ACS) wires, delivering the mechanical strength and fault current capacity required for overhead transmission line service.
Key Performance Features:
- Fiber Count: 24 Single-Mode (ITU-T G.652D / G.657A1)
- Cable Construction: Central aluminum tube, ACS outer strands
- Operating Temperature: -40°C to +65°C
- Short-Circuit Fault Current Capacity: Per project specification (kA²·s)
- Corrosion-resistant, UV-stable outer layer
- Compliant with IEEE 1138, IEC 60794-4, IEC 61232
- Excellent lightning protection and low electrical resistance grounding path
Fiber Count: 24 Single-Mode | Fiber Type: ITU-T G.652D / G.657A1 | Construction: Central Aluminum Tube | Outer Strands: Aluminum-Clad Steel (ACS) | Operating Temperature: -40°C to +65°C | Application: 66kV–500kV Overhead Transmission Lines | Standards: IEEE 1138, IEC 60794-4, IEC 61232 | Manufacturer: Hasçelik Kablo, Kayseri, Turkey
Hasçelik OPGW 24-Fiber cable is ideal for the following applications:
- Replacement of existing shield/static wires on overhead transmission lines (66kV – 500kV)
- New transmission line construction requiring integrated fiber optic communication
- Utility SCADA systems and teleprotection relay communication
- Power grid remote monitoring and automation
- Smart grid infrastructure and substation interconnection
- Third-party carrier fiber leasing along transmission right-of-way
- Lightning protection and fault current grounding on high-voltage towers
- Long-haul fiber backhaul along energy corridor routes
OSP |
Hasçelik Kablo OPGW 24-Fiber Aluminum Central Tube — IEEE 1138 / IEC 60794-4 compliant dual-function optical ground wire. 24 SM fibers (ITU-T G.652D), ACS outer strands, operating temp -40°C to +65°C, suitable for 66kV–500kV transmission lines. |
|---|
