Spiral Armored Fiber Cable for Flexible Deployment

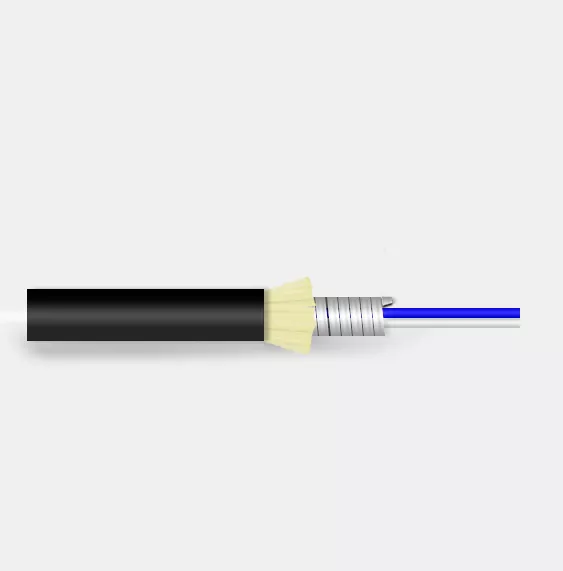

The 3.3mm Double Core Spiral Armored Fiber Optic Cable combines a compact cable structure with spiral armoring to provide additional mechanical protection during fiber installation and use.
Its small diameter makes it suitable for applications where installation space is limited, while the armored construction helps protect the optical fibers from mechanical stress.
The cable supports multiple installation methods, including pipeline, overhead, and direct burial, making it suitable for different fiber infrastructure environments.
The cable is available with different jacket materials, lengths, colors, fiber modes, and connector configurations to meet different project requirements.
1. Double-Core Design
Two optical fiber cores provide a compact solution for applications requiring dual-fiber transmission.
2. Spiral Armored Construction
The spiral armor adds mechanical protection while maintaining a compact cable structure.
3. Compact 3.3mm Diameter
The small cable size helps simplify routing and installation in space-constrained environments.
4. Multiple Installation Methods
Suitable for pipeline, overhead, and direct-buried fiber installation.
5. Low Optical Loss
Insertion loss is specified at ≤0.3 dB, supporting efficient optical transmission.
6. High Return Loss
Return loss is specified at ≥45 dB according to the product information.
7. Multiple Jacket Options
Available with PVC, LSZH, or PU jacket materials.
8. Multiple Connector Options
Compatible configurations include SC, LC, ST, FC, MU, DIN, D4, E2000, MTRJ, SMA, LX, and DLC.
The 3.3mm Double Core Spiral Armored Fiber Optic Cable can be used for:
- Pipeline fiber installation
- Direct-buried fiber deployment
- Overhead fiber routing
- Telecom infrastructure
- Fiber network construction
- Compact fiber routing
- Fiber equipment and termination connections
- OSP and access network projects
Its compact armored construction makes it suitable for projects where both space efficiency and mechanical protection are important.
The cable supports three main installation methods:
Pipeline Installation
Suitable for routing through existing pipelines or conduit systems where the cable needs additional mechanical protection.
Overhead Installation
Can be used for overhead fiber routing where the installation environment and supporting hardware are appropriate.
Direct Burial
The armored construction provides additional mechanical protection for underground deployment. Installation should follow the requirements of the specific project and applicable local specifications.
| Specification | Details |
|---|---|
| Product Type | Double Core Spiral Armored Fiber Optic Cable |
| Cable Diameter | 3.3mm |
| Construction | Spiral Armored with Weaving |
| Fiber Mode | Single Mode / Dual Mode* |
| Fiber Core Options | SM / MM |
| Jacket Material | PVC / LSZH / PU |
| Available Lengths | 300m / 500m / 1000m / 2000m |
| Available Colors | Blue / Black / Yellow / Red / Orange / White / Green |
| Installation Methods | Pipeline / Overhead / Direct Burial |
| Connector Options | SC / LC / ST / FC / MU / DIN / D4 / E2000 / MTRJ / SMA / LX / DLC |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥45 dB |
Frequently Asked Questions
1. What is the diameter of this armored fiber optic cable?
The cable has a compact 3.3mm diameter.
2. Can this cable be used for direct burial?
Yes. Direct burial is one of the listed installation methods for this cable. The actual installation should follow project and local requirements.
3. Can it be installed through a pipeline?
Yes. The cable is designed for pipeline, overhead, and direct-buried installation.
4. What jacket materials are available?
PVC, LSZH, and PU jacket options are available.
5. What cable lengths are available?
Standard listed lengths include 300m, 500m, 1000m, and 2000m.
6. What connectors are available?
Available connector configurations include SC, LC, ST, FC, MU, DIN, D4, E2000, MTRJ, SMA, LX, and DLC.
7. Can I order a specific fiber configuration?
Yes. Different fiber configurations and connector options are available depending on project requirements. Please contact OSP to confirm the required configuration before ordering.
8. Can I order a small quantity for testing?
Small-quantity orders may be available depending on the selected configuration, cable length, and connector type. Contact OSP to confirm availability.
Need a Specific Configuration?
For project requirements involving different fiber counts, connector types, jacket materials, colors, or cable lengths, contact OSP for configuration and bulk pricing.
