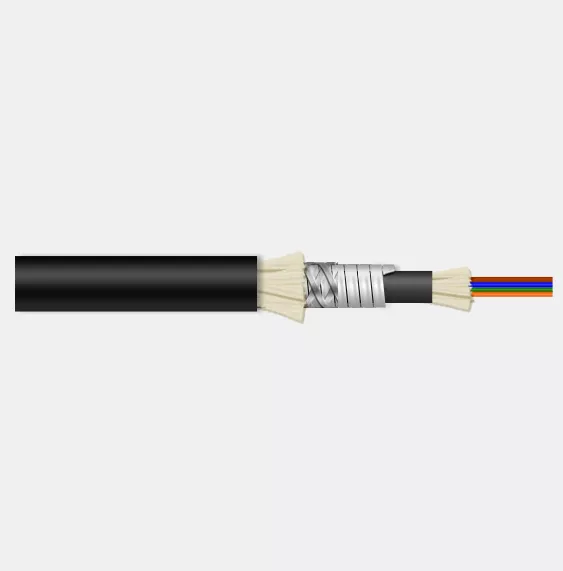

Field Armored Fiber Cable for Outdoor Deployment
The 4-Core Field Armored Fiber Optic Cable is designed for fiber installations where additional mechanical protection is required without using a bulky cable structure.
Its armored construction helps protect the optical fibers during installation and use, while the compact design makes it suitable for different outdoor routing environments.
The cable supports pipeline, overhead, and direct-buried installation, providing flexibility for telecom and fiber infrastructure projects.
Multiple cable lengths, jacket materials, colors, and connector configurations are available for different project requirements
1. 4-Core Fiber Design
Provides four optical fiber cores in a compact armored cable structure.
2. Armored Construction
Adds mechanical protection for fiber deployment in demanding installation environments.
3. Compact Cable Structure
Designed to provide mechanical protection while maintaining a relatively compact form.
4. Multiple Installation Methods
Suitable for pipeline, overhead, and direct-buried fiber installations.
5. Low Optical Loss
The product specification lists an insertion loss of ≤0.3 dB.
6. High Return Loss
The listed return loss is ≥45 dB, supporting reliable optical transmission.
7. Multiple Jacket Materials
Available in PVC, LSZH, and PU options.
8. Multiple Connector Options
Configurations are available with SC, LC, ST, FC, MU, DIN, D4, E2000, MTRJ, SMA, LX, and DLC connectors.
The 4-Core Field Armored Fiber Optic Cable can be used for:
1. Underground fiber networks
2. Pipeline fiber installation
3. Direct-buried fiber deployment
4. Overhead fiber routing
5. Telecom infrastructure projects
6. Outdoor fiber network construction
7. Fiber equipment connections
8. OSP fiber deployment
The cable is particularly suited to installations where the fiber needs additional mechanical protection while maintaining a compact cable structure.
Flexible Installation Options
The cable supports three main installation methods listed by the manufacturer:
Pipeline Installation
Suitable for routing fiber through existing pipelines or conduit systems.
Overhead Installation
Can be used for overhead fiber routing where the project design and supporting hardware allow this installation method.
Direct Burial
The armored construction provides additional mechanical protection for underground deployment. Installation should follow the requirements of the specific project and applicable local specifications.
| Specification | Details |
|---|---|
| Product Type | Field Armored Fiber Optic Cable |
| Fiber Cores | 4 Cores |
| Construction | Armored |
| Jacket Material | PVC / LSZH / PU |
| Available Lengths | 300m / 500m / 1000m / 2000m |
| Available Colors | Blue / Black / Yellow / Red / Orange / White / Green |
| Installation Methods | Pipeline / Overhead / Direct Burial |
| Connector Options | SC / LC / ST / FC / MU / DIN / D4 / E2000 / MTRJ / SMA / LX / DLC |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥45 dB |
Frequently Asked Questions
1. What type of fiber cable is this?
This is a 4-core field armored fiber optic cable designed for outdoor and infrastructure fiber installations.
2. Can this cable be used for direct burial?
Yes. Direct burial is one of the installation methods listed for this product. The installation should follow the requirements of the specific project.
3. Can it be installed through a pipeline?
Yes. Pipeline installation is one of the supported installation methods.
4. Is it suitable for overhead installation?
Yes. The manufacturer lists overhead installation as one of the available laying methods. The appropriate installation hardware and project requirements should be considered.
5. What jacket materials are available?
PVC, LSZH, and PU jacket options are available.
6. What cable lengths are available?
Available lengths include 300m, 500m, 1000m, and 2000m.
7. What connectors are available?
Available connector options include SC, LC, ST, FC, MU, DIN, D4, E2000, MTRJ, SMA, LX, and DLC.
8. What are the listed optical performance values?
The manufacturer lists insertion loss of ≤0.3 dB and return loss of ≥45 dB.
9. Can I order a specific configuration?
Yes. Contact OSP to confirm the required cable length, jacket material, connector configuration, and other project requirements.
10. Can I order a small quantity for testing?
Small-quantity orders may be available depending on the selected configuration and cable length. Contact OSP to confirm availability.
Need a Specific Configuration?
For project requirements involving different cable lengths, jacket materials, colors, connectors, or fiber configurations, contact OSP for availability and bulk pricing.
